Residential Tower With Concrete Frame
Class 18 - Session 1

This is part two of our examination of a residential tower constructed with a concrete frame. If you look at the background in this image, you will see a tower crane. This one has a horizontal boom. You know, now that it's different than the crane we saw in the steel frame construction. This is a lower capacity crane.

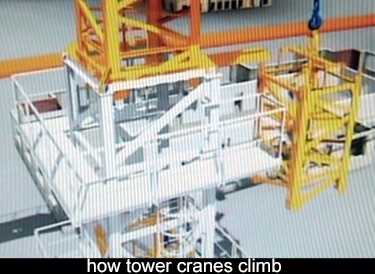

cartoon showing how tower crane is assembled and climbs There's an excellent cartoon showing exactly how the crane is assembled and how it jumps. I think this will clear up any questions you may have in your mind as to how this crane moves. Again, there's this is different. This is externally mounted. The tower begins at street level, and it goes up the height of the building. It is quite different from the internally mounted crane we saw in the steel frame construction. That climbs with the building, and it just has a very short tower, so you get to experience both options.

In this illustration, the tower is being supported on the ground. They construct a grillage of steel. They were loaded with counterweights, and that will support the tower. Obviously, that's feasible, but you need to know the nature of the soil below you, the capacity of the soil, and whether there are any voids or utilities in that immediate area. I've actually never used a tower crane supported on the ground this way. That's not to say that it's not feasible, but in my experience, I always construct a dedicated foundation for it. Sometimes that even requires driving piles.

This issue exists not just for tower cranes, but for cranes in general. I'm sure you've seen, in the city, a conventional crawler crane with its boom almost vertical. Configured that way, it looks just like a tower crane. It's supported on a series of timber mats.

A very careful study has to be made concerning the nature of the ground below that. In the city, there of sidewalk vaults. There are utilities. It's not just the question of the competency of the soil, but you need to be very confident about the conditions below that concentrated load.

It is especially concentrated in the case of a tower and, perhaps, less so when the load is distributed over a crawler crane base and those timber pontoons. They are continuing construction of that steel grillage. Here they are, assembling the boom on the ground, of course. That's the starter section of the tower.

They depend entirely on these counterweights for the stability of the crane. And that's a regular section of tower. This is the climbing frame. The climbing frame includes hydraulic cylinders, which create the motion. That's the last section of the tower before they install the boom. That's the counterweight portion of the boom. That's the boom itself.

Very ingenious, they make the connection, and then they lower the boom, which preloads the connection. Now they're filling in the counterweights. Now the crane is ready to go. I think the only thing they did not show -that's the cab. The only thing they did not show is there's a trolley that runs along the horizontal boom, and that has to be attached as well. Now they are going to raise the crane using those hydraulic cylinders. They don't raise it all at once. They raise it up part of the way, and then advance it some more.

It's been fully advanced, and they're ready to insert another section of the tower. There's a little outrigger, which receives it and draws it into place. I've never seen a better description of how this works, so if you would didn't absorb it all, just go back and look at it again when you have some time, Of course, the tower cannot be freestanding. It needs to be attached to the building. That's what's indicated here. The process is reversed when you're ready to dismantle the crane.
